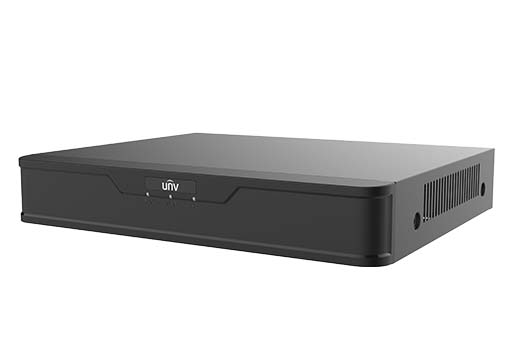

UNV XVR301-04Q3 4CH 8MP 48Mbps H.265 Pentabrid XVR
Support H.265/H.264 video formats
Support audio over coaxial cable(only for TVI cameras)
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
4 channel BNC input, Support 1 ch CVBS output, 1 ch VGA output
1 ch HDMI output at up to 4K (3840 x 2160)
HDMI and VGA simultaneous output
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols
Documents
Specifications
| Brand | UNIVIEW |
| AHD Video Input | 4CH |
| IP Video Input | 6CH |
| Audio Input | 4CH |
| Recording Resolution | 8Mp Lite |
| Material | Metal |
| Power Supply | DC 12V |
| Sata Port | 1 HDD |
| VGA | 1 |
| HDMI | 1 |
| USB B Type | 2 |
| Network RJ45 | 1 |
